DIODE SCHOTTKY 30V 2A DO214AA
CONN HEADER VERT 5POS 2.54MM
BOARD TO BOARD
IC CHIP

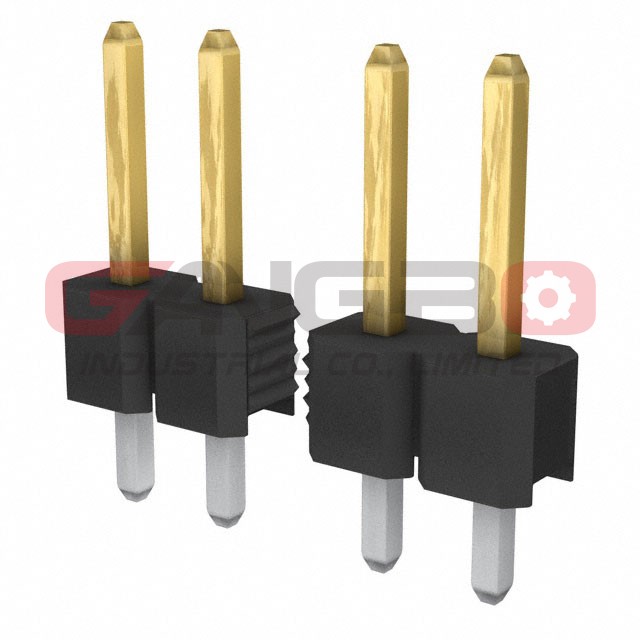

图片仅供参考，请联系我们获取真实图片
| 类型 | 描述 |
|---|---|
| 系列: | BERGSTIK® |
| 包裹: | Bulk |
| 零件状态: | Obsolete |
| 连接器类型: | Header, Breakaway |
| 联系方式: | Male Pin |
| 俯仰交配: | 0.100" (2.54mm) |
| 职位数: | 5 |
| 行数: | 1 |
| 行距 - 交配: | - |
| 加载的位置数: | All |
| 风格: | Board to Board |
| 笼罩: | Unshrouded |
| 安装类型: | Through Hole |
| 终止: | Solder |
| 紧固类型: | Push-Pull |
| 接触长度 - 交配: | 0.276" (7.00mm) |
| 接触长度 - 后: | 0.118" (3.00mm) |
| 总接触长度: | 0.496" (12.60mm) |
| 绝缘高度: | 0.102" (2.60mm) |
| 接触形状: | Square |
| 接触完成 - 交配: | Gold or Gold, GXT™ |
| 接触表面厚度 - 配合: | 8.00µin (0.203µm) |
| 接触完成 - 发布: | - |
| 接触材料: | Copper Alloy |
| 绝缘材料: | Thermoplastic |
| 特征: | - |
| 工作温度: | - |
| 入口保护: | - |
| 材料可燃性等级: | UL94 V-0 |
| 绝缘颜色: | - |
| 额定电流（安培）: | 3A |
| 额定电压: | 1000V |
