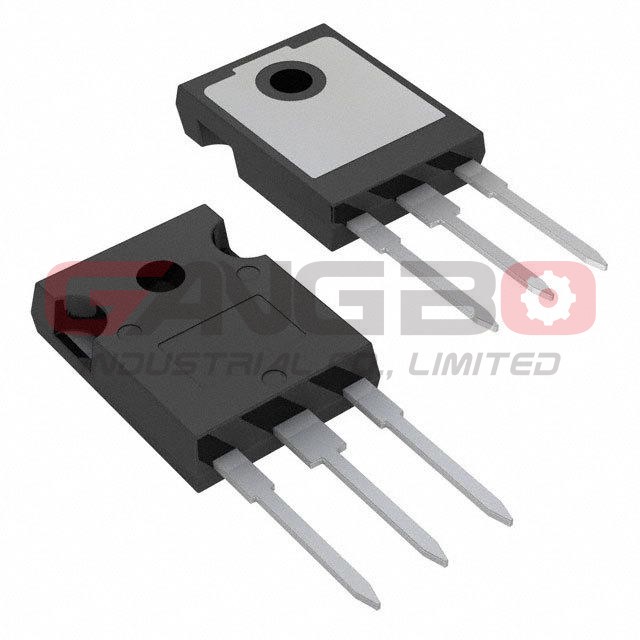

IGBT 600V 48A 250W TO247AC
LINE TRANSCEIVER
CONN TERM STRIP 3CIRC 0.571"
SENSOR 15PSI M20-1.5 6G .5-4.5V
图片仅供参考，请联系我们获取真实图片
| 类型 | 描述 |
|---|---|
| 系列: | - |
| 包裹: | Bulk |
| 零件状态: | Active |
| igbt型: | Trench |
| 电压 - 集电极发射极击穿（最大值）: | 600 V |
| 电流 - 集电极 (ic) (max): | 48 A |
| 电流 - 集电极脉冲 (icm): | 72 A |
| vce(on) (max) @ vge, ic: | 1.95V @ 15V, 24A |
| 功率 - 最大值: | 250 W |
| 开关能量: | 115µJ (on), 600µJ (off) |
| 输入类型: | Standard |
| 栅极电荷: | 50 nC |
| td（开/关）@ 25°c: | 41ns/104ns |
| 测试条件: | 400V, 24A, 10Ohm, 15V |
| 反向恢复时间 (trr): | 89 ns |
| 工作温度: | -55°C ~ 175°C (TJ) |
| 安装类型: | Through Hole |
| 包/箱: | TO-247-3 |
| 供应商设备包: | TO-247AC |
