IGBT 600V 220A 536W SOT227
BOX PLASTIC GRAY 7.87"L X 4.72"W
BOX PLASTIC GRAY 4.45"L X 3.15"W
IC PWR DRIVER N-CHAN 1:1 20SSOP

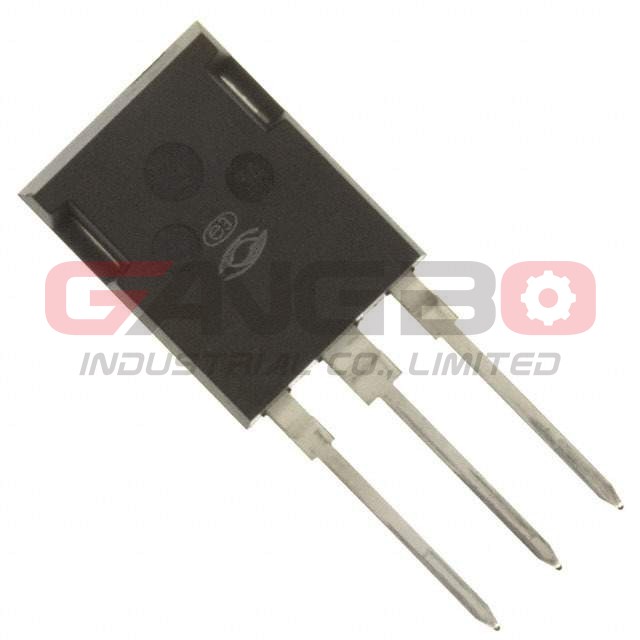

图片仅供参考，请联系我们获取真实图片
| 类型 | 描述 |
|---|---|
| 系列: | - |
| 包裹: | Tube |
| 零件状态: | Active |
| igbt型: | Trench Field Stop |
| 电压 - 集电极发射极击穿（最大值）: | 600 V |
| 电流 - 集电极 (ic) (max): | 220 A |
| 电流 - 集电极脉冲 (icm): | 450 A |
| vce(on) (max) @ vge, ic: | 1.85V @ 15V, 150A |
| 功率 - 最大值: | 536 W |
| 开关能量: | 8.81mJ (on), 4.295mJ (off) |
| 输入类型: | Standard |
| 栅极电荷: | 970 nC |
| td（开/关）@ 25°c: | 44ns/430ns |
| 测试条件: | 400V, 150A, 1Ohm, 15V |
| 反向恢复时间 (trr): | - |
| 工作温度: | -55°C ~ 175°C (TJ) |
| 安装类型: | Through Hole |
| 包/箱: | TO-247-3 Variant |
| 供应商设备包: | - |
